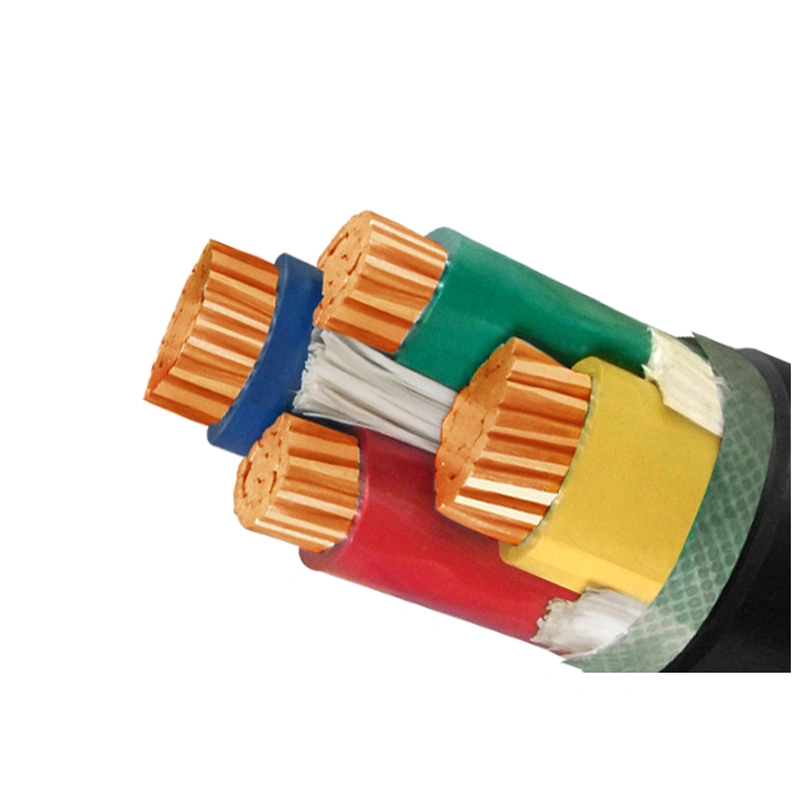

4 Cores 0.6/1kV CU PVC Insulated Power Cable Power Transmission Cable With IEC Certified
4 Cores 0.6/1kV CU PVC Insulated Power Cable Power Transmission Cable With IEC Certified
4 Cores 0.6/1kV CU PVC Insulated Power Cable Power Transmission Cable With IEC Certified
Used for power transmission and distribution lines with a rated voltage of 35kV and below. Suitable for indoor and outdoor laying. Capable of withstanding certain traction during installation, but not external mechanical forces.
Product Information
Model Number:
CU/PVC/PVC
Cores:
4
Size:
2.5 sqmm ~ 630 sqmm
Conductor Type:
Copper
Rated Voltage:
600/1000V
Insulation Color:
red, yellow, blue, green
facebook
line
Whatsapp
Pinterest
Tumblr
Linkedin

Construction

Conductor: Circular stranded copper conductor, conforms to IEC 60228 class 2

Insulation: PVC

Sheath: PVC type ST2 to IEC 60502, black

Note: Insulation color as per standards or customer requirement



Applications

Used for power transmission and distribution lines with a rated voltage of 35kV and below.

Suitable for indoor and outdoor laying. Capable of withstanding certain traction during installation, but not external mechanical forces.



Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS, DIN and ICEA are available upon request


Technical Data
Rated Voltage: 0.6 / 1 kV
Maximum Conductor Temperature: 90℃ under normal conditions, 130℃ under emergency conditions, or no more than 250℃ for short circuits lasting up to 5 seconds.
Minimum Ambient Temperature: 0℃, applicable after installation and only when the cable is in a fixed position
Minimum Bending Radius: 20 x cable outer diameter for single-core cables; 15 x cable outer diameter for multi-core cables
Certificates
CE, RoHS, CCC, KEMA and more are available upon request



Electric Performance

1. Maximum Conductor DC Resistance @ 20℃, Ω/km

Cross Section mm² Copper Aluminum

Cross Section

mm²

 Copper Aluminum
25 0.727 1.20 185 0.0991 0.164
35 0.542 0.868 240 0.0754 0.125
50 0.387 0.641 300 0.0601 0.100
70 0.268 0.443 400 0.0470 0.0778
95 0.193 0.320 500 0.0366 0.0605
120 0.153 0.253 630 0.0238 0.0469
150 0.124 0.206



2. Single-phase AC 50Hz Voltage Test or DC Voltage Test:

Rated Voltage 3.6 6 8.7 12 18 21 26
Single-phase AC 50Hz Test Voltage 12.5 21 30.5 42 63 73.5 91



3. Partial Discharge Test:

The test voltage is 1.73U₀, and the partial discharge should not exceed 10 pC.



Voltage Rating for XLPE Power Cable No. x Nominal Cross Section of Conductor (No. x mm²)
1 Core 2 Core 3 Core 3+1 Core 4 Core 3+2 Core 4+1 Core 5 Core
0.6/1 kV 1x4 mm² 2x4 mm² 3x4 mm² 3x4 mm² + 1x2.5 mm² 4x4 mm² 3x4 mm² + 2x2.5 mm² 4x4 mm² + 1x2.5 mm² 5x2.5 mm²
1x6 mm²
