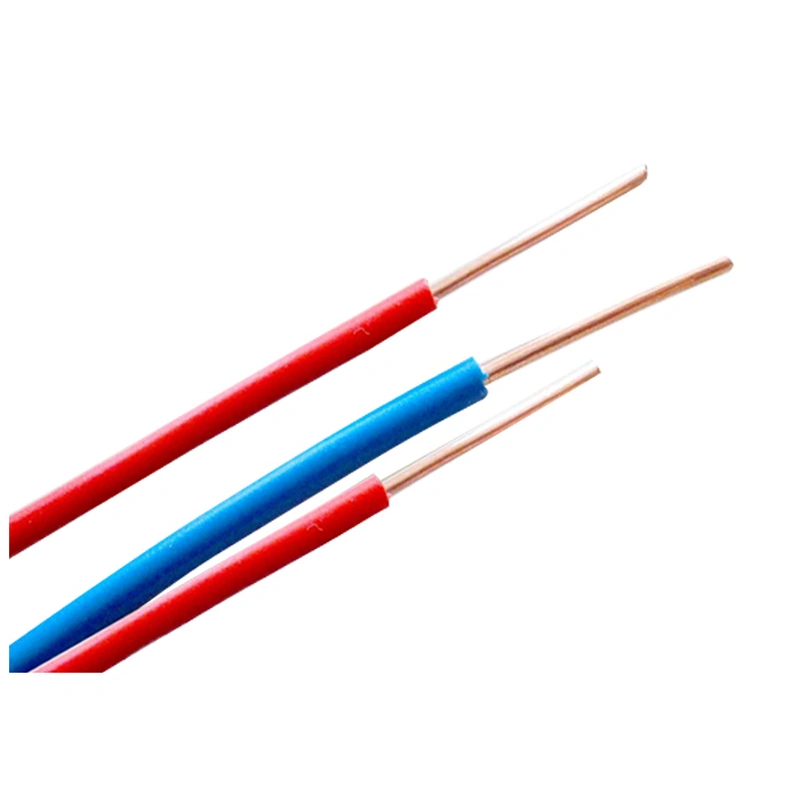

Shanghai Shenghua Cable (Group) Co., Ltd.​​—a ​​Top 500 Chinese manufacturer​​ with ​​20+ years of expertise​​—sets a new benchmark in fire safety with its ​​450/750V LSZH Copper Building Wire​​. Engineered for high-risk environments like subways, hospitals, and data centers, this IEC-certified solution combines zero-halogen innovation, extreme thermal resilience, and global compliance to protect lives and assets worldwide.

​​1. Advanced Engineering for Life-Saving Performance​​

• ​​Zero-Halogen Innovation​​:
  • ​​LSZH Insulation​​: Eliminates toxic fumes (HCl, HBr) during fires, reducing smoke opacity to ​​>60% light transmittance​​ (vs. <20% for PVC) and limiting acid gas emissions to ​​<0.2% halogen content​​

  • ​​Corrosion Prevention​​: PH value of combustion gases maintains ​​≥4.3​​ (weak acidity), protecting sensitive equipment in control panels

• ​​Thermal Resilience​​:
  • ​​90°C Continuous Operation​​: Surpasses standard PVC (70°C) in high-heat zones like motor starters

  • ​​150°C Short-Circuit Survival​​ (5s): Prevents meltdowns during electrical faults

• ​​Flexible Conductors​​:
  • ​​Class 5 Stranded Copper​​: 360° bendability (e.g., ​​4× OD radius​​ for ≤35mm² cables) for tight conduits in switchgear


​​2. Certified Global Compliance​​

• ​​Standards​​: IEC 60227, GB/T 5023 (BV-90), with optional BS/DIN/ICEA certification

• ​​Safety Certifications​​: CE, RoHS, CCC, UL, REACH—ensuring EU/UKCA/ANSI market access

• ​​Fire Safety​​: Exceeds IEC 60332 flame tests and IEC 60754-1/2 gas emission limits


​​3. Technical Superiority Across Applications​​

​​Key Specifications​​:

​​Applications​​:

• ​​Healthcare & Schools​​: LSZH sheath reduces smoke toxicity in evacuation-critical sites (e.g., 80% lower CO vs. PVC)

• ​​Data Centers​​: Halogen-free materials prevent server corrosion during fires

• ​​Industrial Control Panels​​: Stranded conductors (Class 5) resist fatigue in vibrating machinery


​​4. Why Global Partners Trust Shenghua?​​

• ​​Manufacturing Excellence​​:
  • ​​Zero-Defect Policy​​: 100% IACS copper purity (99.99%) minimizes resistance to ​​0.0221Ω/km​​ (240mm²), cutting energy loss by 30%

  • ​​Scalable Production​​: ​​5,000 km/month output​​ with ​​10-day global delivery​​

• ​​Customization & Service​​:
  • ​​OEM Flexibility​​: Supports solid/stranded conductors, 12+ colors, and CCA alternatives

  • ​​2-Year Warranty​​: PICC-backed coverage + ​​24/7 support​​ (72-hour global response)

• ​​Sustainability​​:
  • ​​Recyclable Copper​​: 95% reuse rate vs. 65% for aluminum, aligning with LEED green building goals


CONSTRUCTION

Conductor: Solid or Stranded copper conductor
Insulation: LSZH (Low Smoke Zero Halogen)

CHARACTERISTICS

Voltage Rating (Uo/U):
H05Z-K - 0.5mm2 to 1mm2: 300/500V
H07Z-K - 1.5mm2 to 240mm2: 450/750V
Temperature Rating: -25°C to +90°C
Minimum Bending Radius:
Up to 35mm2: 4 x overall diameter
50mm2 and above: 6 x overall diameter
Insulation Colour:Red Black Blue Orange White Yellow Green/Yellow Grey Brown Violet Pink

Single-core non-sheathed cables with flexible conductor for internal wiring for a conductor of 90℃
Code designation: 60227 IEC 08 (International), BV-90 300/500V(China)

Temperature range :

during installationi : +5 °C up to +90 °C
fixed installed : -30 °C up to +70 °C
at short circuit of max. 5 s : up to 150 °C
ambient temperature at storage : up to 40 °C
Nominal voltage : Uο/U = 300/500 V
Test voltage : 2000 V
Minimal inner bending radius : 4D for D < 8 mm
5D for 8 - 12 mm
6D for D > 12 mm
