Product Description
Copper clad aluminum wire is manufactured using cladding and welding technology, where high-quality copper is concentrically clad on the outer surface of an aluminum rod or steel wire core. A strong metallurgical bond is formed between the copper layer and the core at the atomic level, integrating the two different metal materials into a single whole. This allows the drawing and annealing processes to be carried out like those for a single metal wire, with the volume ratio of the copper layer remaining relatively constant as the copper-aluminum proportion is adjusted.

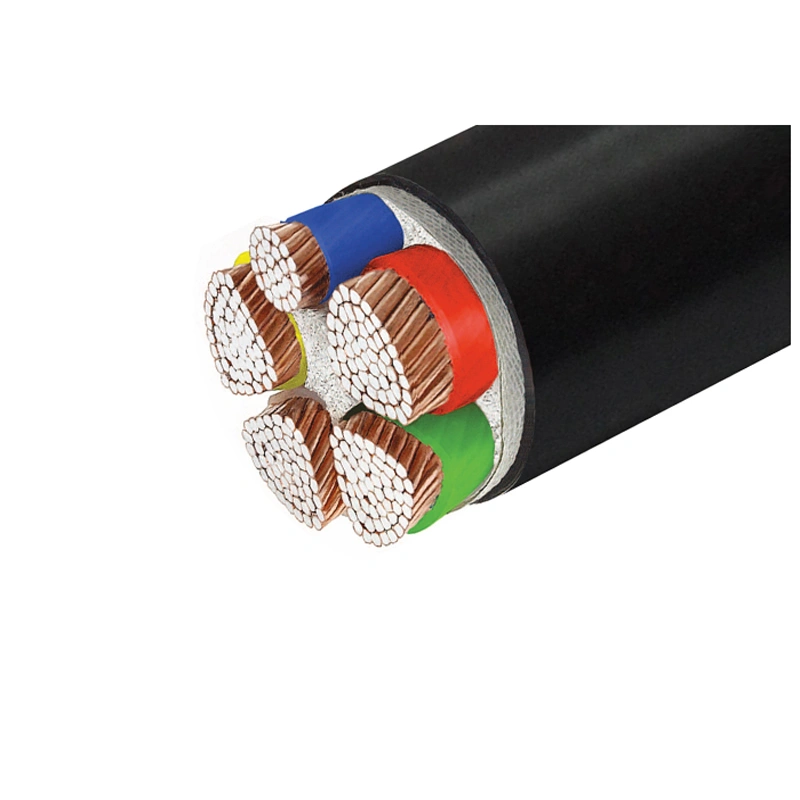

Product Structure:
Copper clad aluminum conductor
XLPE or PVC insulation
PVC or polyolefin sheath
Product Features Analysis:
1. DC Resistivity: The DC resistivity of copper clad aluminum wire is approximately 1.5 times that of copper wire (for the same nominal value), while its weight is about half that of copper wire.
2. Using copper clad aluminum conductors can maintain compliance with long-standing habits in wire and cable product selection, design, and installation for many years. Cable terminals can also be crimped and soldered.
3. Lower AC Resistance:
4. Light Weight and Low Cost: Compared with copper cables of the same technical specifications, copper clad aluminum conductor cables save over 40% in cost, and copper clad aluminum/copper composite conductor cables save over 20% in cost.
5. Good Weldability: Since copper clad aluminum wire has a concentric copper layer on its surface, it has the same weldability as copper wire, facilitating production.
Classification
One type is copper clad aluminum cable for signal or communication purposes, and the other is for power supply.
Voltage Level
0.6/1KV 3.6/6KV 8.7/10KV, 8.7/15KV 12/20KV
18/20KV 21/35KV 26/35KV
Type and Data
0.6/1KV Single Core
| Nominal Section of Conductor | Nominal Insulation Thickness (mm) | Thickness of Sheath (mm) |
Cable Diameter (mm) |
Reference Weight (kg/km) |
20℃ Max DC Resistance of Conductor (Ω/KM) |
| 1x2.5 | 0.8 | 1.8 | 7.5 | 63 | 10.8 |
| 1x4 | 1.0 | 1.8 | 8.5 | 80 | 6.92 |
| 1x6 | 1.0 | 1.8 | 9.0 | 94 | 4.35 |
| 1x10 | 1.0 | 1.8 | 10.0 | 126 | 2.70 |
| 1x16 | 1.0 | 1.8 | 11.5 | 161 | 1.74 |
| 1x25 | 1.2 | 1.8 | 13.5 | 225 | 1.10 |
| 1x35 | 1.2 | 1.8 | 14.0 | 277 | 0.765 |
| 1x50 | 1.4 | 1.8 | 16.0 | 355 | 0.539 |
| 1x70 | 1.4 | 1.8 | 17.5 | 460 | 0.386 |
| 1x95 | 1.6 | 1.8 | 20.0 | 603 | 0.284 |
