Copper XLPO Jacket Solar Photovoltaic Solar PV Cable Flame Retardant

Especially for the connection between the solar power generation device connector and the inverter connection, under the condition of outdoor installation in different climates, it can also adapt to the dry and wet indoor working environment.

Product Information

Model Number:

PV1-F

Place of Origin:

Shanghai

Certification:

TUV

Minimum Order Quantity:

2000 meters

Corporation:

Shenghua Group

Inquiry

Product Details

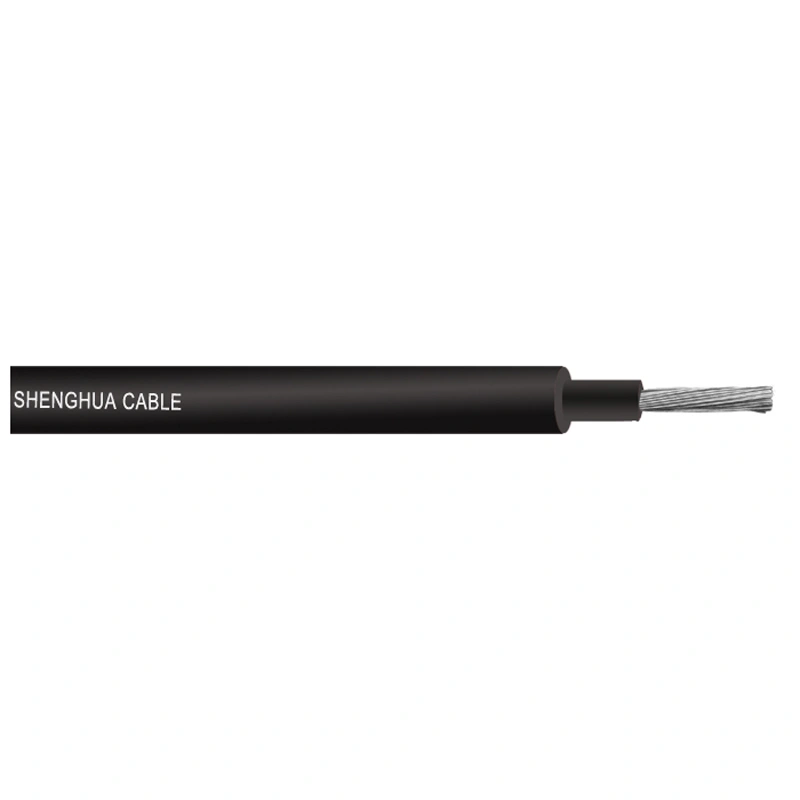

Cable Structure

Conductor: Tinned Copper, according to VDE 0295/IEC
60228, Class 5

Insulation: Electron-beam cross-linked Polyolefin
Copolymer TUV2PfG/1169

Sheath: Polyolefin Copolymer electron-beam cross-linked TUV2PfG/1169

Insulation/Sheath colour : black/black, black/blue, red/red, blue/black, black/red,red/black, blue/blue,yellow/green or based on your demand

Characteristic

High heat-resistant flame retardant
• halogen-free
• climate resistance
• minimum bending radius: Φ ≦ 12mm:3XD
Φ > 12mm:4XD
• halogen-free:
Not contain hydrochloric acid comply with EN50627-2-1
Not contain fluorinecomply with EN60684-2
• Flame retardant from extinguish compy with IEC60332-1-
2+EN60332-1-2

Future

Right now our solar cables are welcomed SUPER HOT at UK, Belgium, Germany, Hungary, France, Australia, India etc.

Solar system industry is very hot recently and more in the future, now almost all the countries goverment are now encouraging and supporting this industry to reduce CO2 releasing.

Technical Parameter

Section Area (mm2)	External Diameter (mm)	Current Carrying Capacity (A)
6	7.2	70

Packing and shipping: Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

After-service commitment: Shanghai Shenghua Cable (Group) possesses Shenghua tenet "Strive for the Best Enterprise, Produce the Best Product, Provide the Best Service, Establish the Best Brand", insists the policy of quality first, endeavors to achieve high quality and zero defect of goods. Therefore, every client could fully benefit from Shenghua Cable's superior quality and faultless service. Meanwhile, we observe Shenghua spirit of "Do Best, Mutually Win", wish to establish long-term and stable relationship with every client.
