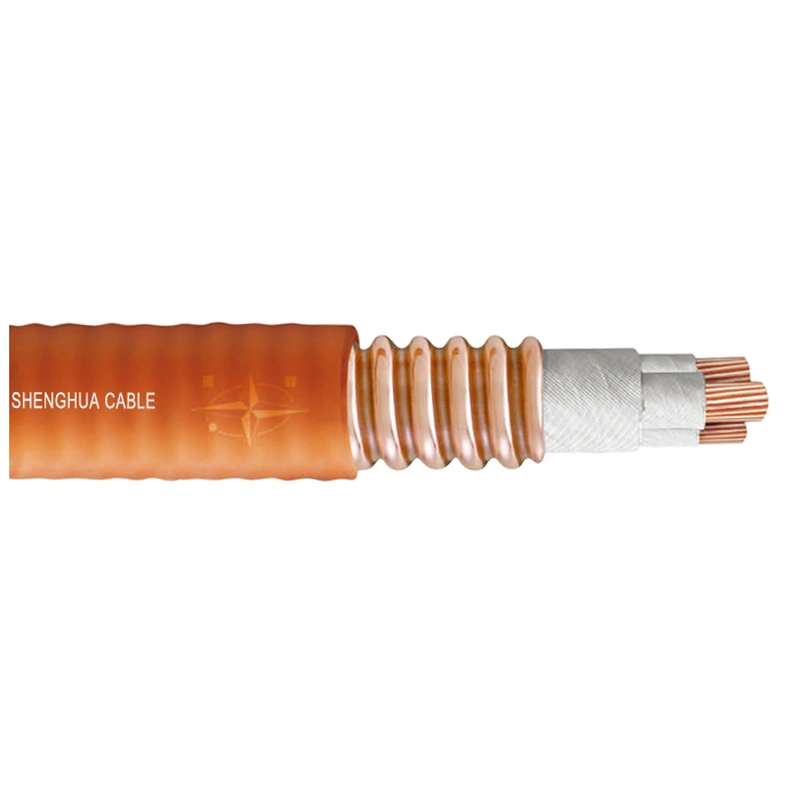

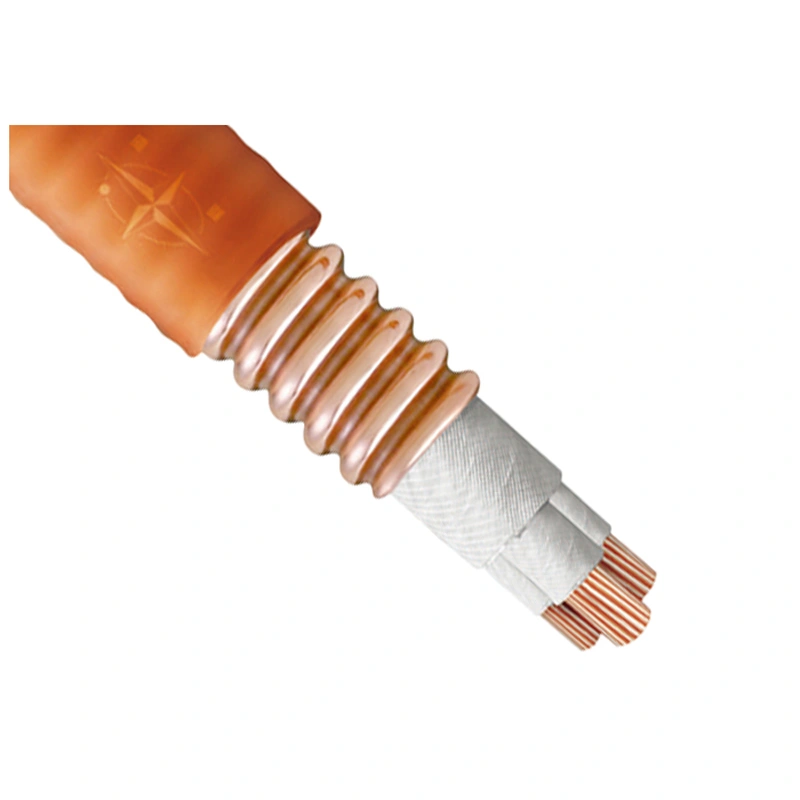

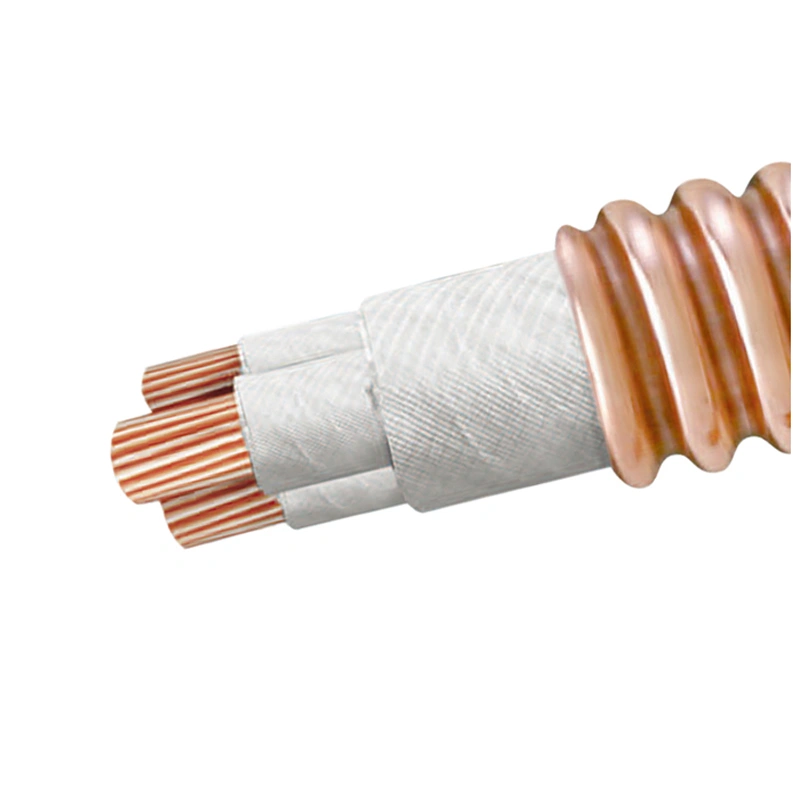

Corrosion Resistant 0.6/1kV 4x70 1x35 Sqmm Lszh High Temperature Cable
Application: Railway Stations, Road & Rail Tunnels, Public Lighting, Car Parks, Public Service Buildings, Shopping Malls, Airports, Underground Rail Systems, Schools, Hospitals, Hotels, Theaters, Churches, Power Stations, Boiler Houses, Oil & Gas Stations, Emergency Lifts, etc.
Product Information
Model Number:
BBTRZ 0.6/1kV 4x70+1x35
Jacket:
LSZH
Voltage:
0.6/1 kV
Fire-Temp:
950 Degrees
Conductor:
Stranded Copper Class 2
Insulation:
Mica Tape
1. Application
Railway Stations, Road & Rail Tunnels, Public Lighting, Car Parks, Public Service Buildings, Shopping Malls, Airports, Underground Rail Systems, Schools, Hospitals, Hotels, Theatres, Churches, Power Stations, Boiler Houses, Oil & Gas Stations, Emergency Lifts and so on.
2. Standards
International: GB/T 19216 BS6387 IEC 60331
Cable Type: BBTRZ-0.6/1KV 4x70+1X35SQMM
3. Technical Data
Rated voltage: 0.6/1KV
Fire Resistant to 750 ℃/3 Hours.
Commercial Items: MOQ: 500m
Price Term: FOB Shanghai or CIF as requested.
Payment terms: 30% T/T before production, 70% T/T before delivery
Packing: Drum
4. Specifications:
| Nom. Cross-section of Conductor | Insulation Thickness | Sheath Thickness | Nominal Aluminum Sleeve Sheath | Nominal Thickness of Outer Covering | Approx. O.D. |
Approx. Weight |
Max. D.C Resistance of Conductor (20 ℃) |
| mm2 | mm | mm | mm2 | mm | mm | Kg/km | Ω/km |
| 1x95 | 1.0 | 1.2 | 57.0 | 1.7 | 30.1 | 1682 | 0.193 |
| 1x120 | 1.0 | 1.2 | 63.0 | 1.7 | 31.7 | 1956 | 0.153 |
| 1x150 | 1.3 | 1.2 | 71.9 | 1.8 | 34.3 | 2334 | 0.124 |
| 1x185 | 1.3 | 1.2 | 78.3 | 1.8 | 36.0 | 2745 | 0.0991 |
| 1x240 | 1.3 | 1.2 | 109.1 | 1.9 | 38.9 | 3422 | 0.0754 |
| 1x300 | 1.3 | 1.2 | 120.0 | 2.0 | 41.4 | 4106 | 0.0601 |
| 2x95 | 1.0 | 1.2 | 114.0 | 2.0 | 47.4 | 4039 | 0.193 |
| 2x120 | 1.0 | 1.2 | 126.1 | 2.1 | 50.4 | 4741 | 0.153 |
| 2x150 | 1.3 | 1.2 | 143.7 | 2.2 | 55.8 | 5752 | 0.124 |
| 2x185 | 1.3 | 1.2 | 156.5 | 2.3 | 60.0 | 6809 | 0.0991 |
| 2x240 | 1.3 | 1.2 | 218.3 | 2.5 | 66.0 | 8547 | 0.0754 |
| 2x300 | 1.3 | 1.
Recommended products

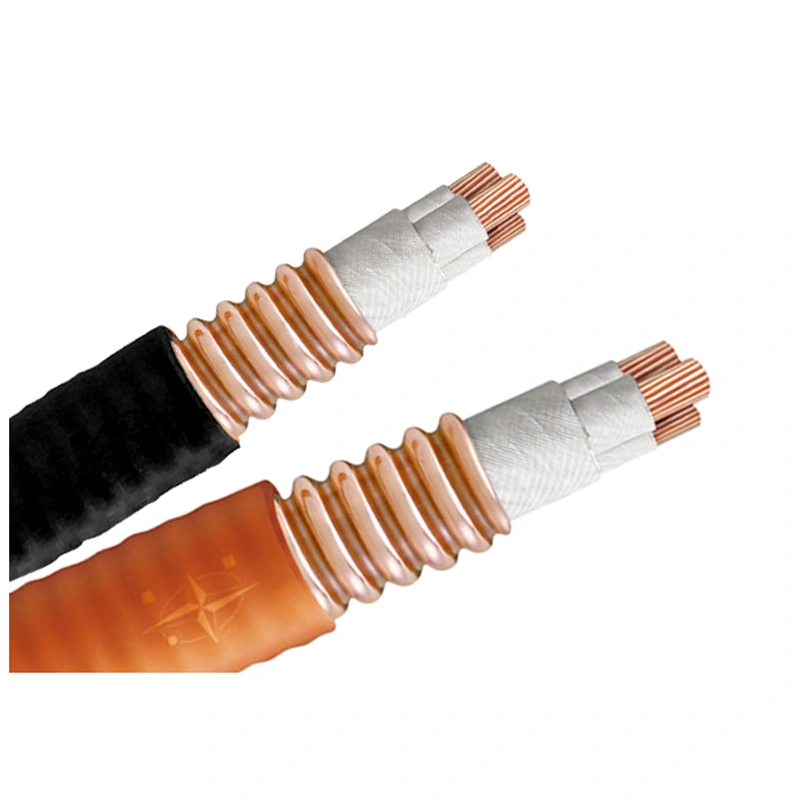

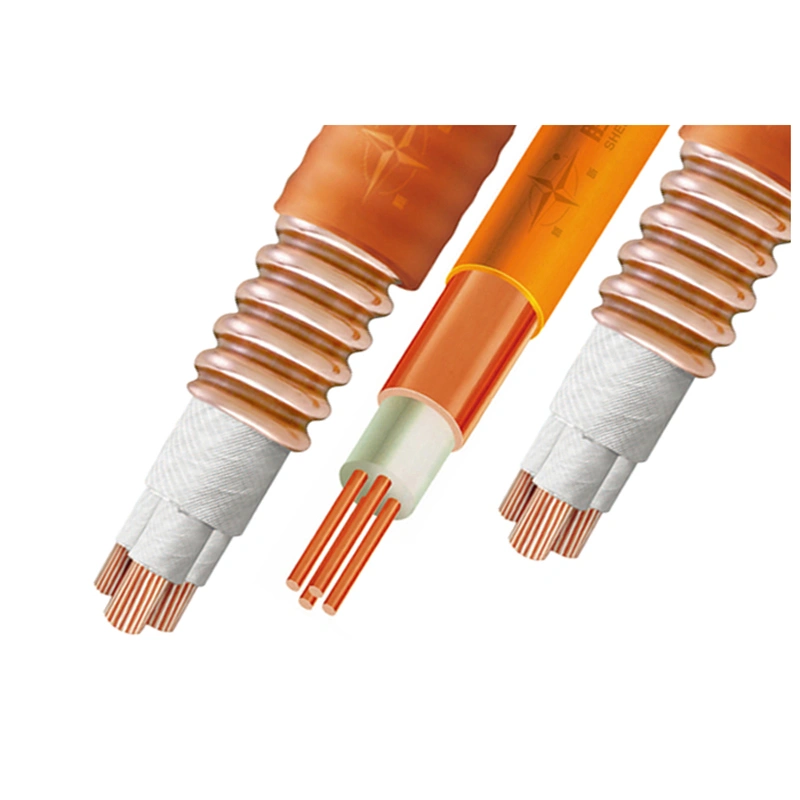

Fire Rated High Temperature Cable IEC60331 Stranded Copper Conductor
