Name: Copper Conductor Low Voltage Distribution Prefab Branch Cable IEC60502 Standard
SKU: OpRWP8EyR5A72h-VzbR9Xg

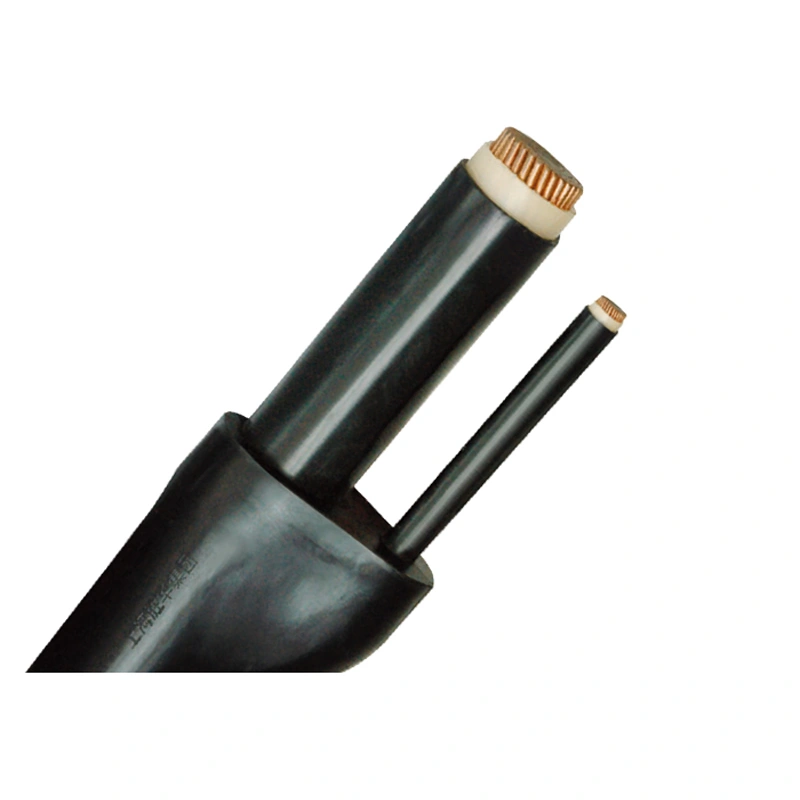

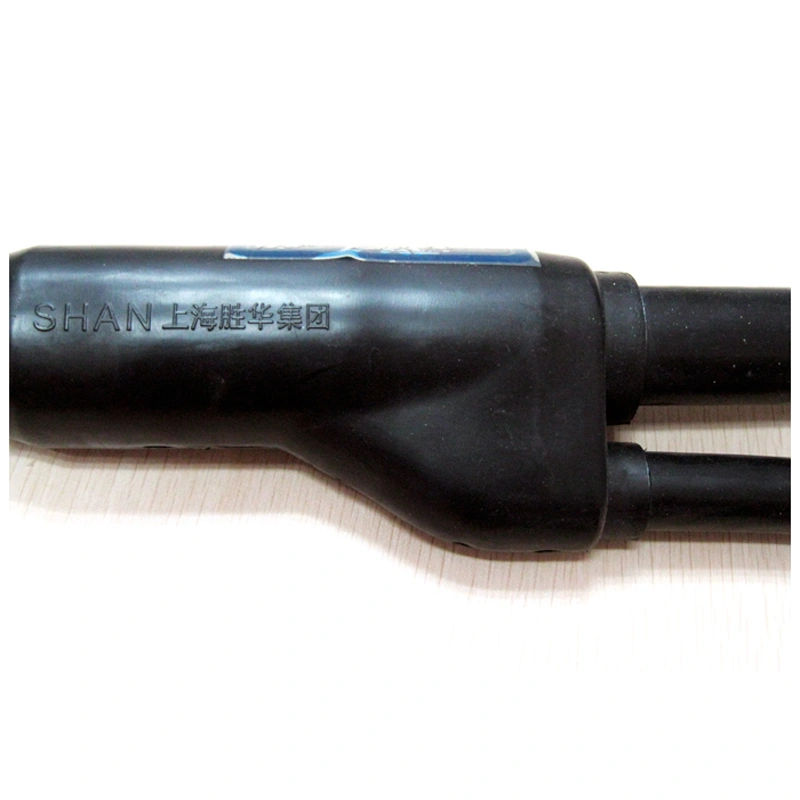

Copper Conductor Low Voltage Distribution Prefab Branch Cable IEC60502 Standard

Prefab branch cable with rated voltage 0.6/1 KV is a new kind of low-voltage distribution product. The prefab style can greatly reduce labor intensity, shorten working time, and significantly cut costs.

Product Information

Model Number:

YDF-YJV, YDF-VV, YDF-YJLV

Minimum Order Quantity:

500m

Corporation:

Shenghua Group

1. Brief introduction

Prefab branch cable is a new type of low-voltage distribution product. The prefabricated design significantly reduces labor intensity, shortens working time, and greatly cuts costs. With its excellent performance, this product is widely used in medium and high-rise buildings, highways, bridges, tunnels, high-level workshops, and other applications.

2. Standards

Our factory has formulated factory standards in accordance with IEC60502 and JIS376A. The insulation performance is far superior to that specified in IEC60502, and the joints are tested in compliance with the standard GB9732.

3. Type & Name

Type	Name
YDF-YJV	Copper Conductor XLPE Insulated PVC Sheathed Prefabricated Branch Cable
YDF-VV	Copper Conductor PVC Insulated PVC Sheathed Prefabricated Branch Cable
YDF-ZR-YJV	Copper Conductor XLPE Insulated PVC Sheathed Flame-Retardant Prefabricated Branch Cable
YDF-ZR-VV	Copper Conductor PVC Insulated PVC Sheathed Flame-Retardant Prefabricated Branch Cable
YDF-NH-YJV	Copper Conductor XLPE Insulated PVC Sheathed Fire-Resistant Prefabricated Branch Cable
YDF-NH-VV	Copper Conductor PVC Insulated PVC Sheathed Fire-Resistant Prefabricated Branch Cable
YDF-WL-YJE	Copper Conductor XLPE Insulated Polyolefin Sheathed Halogen-Free Low-Smoke Flame-Retardant Prefabricated Branch Cable
YDF-WL-EE	Copper Conductor Polyolefin Insulated PVC Sheathed Halogen-Free Low-Smoke Flame-Retardant Prefabricated Branch Cable
YDF-DL-YJV	Copper Conductor XLPE Insulated PVC Sheathed Low-Halogen Low-Smoke Flame-Retardant Prefabricated Branch Cable
YDF-DL-VV	Copper Conductor PVC Insulated PVC Sheathed Low-Halogen Low-Smoke Flame-Retardant Prefabricated Branch Cable

Packing and Shipping

We can meet the most stringent delivery schedules for each purchase order. Meeting deadlines is always our top priority, as any delay in cable delivery can lead to overall project delays and cost overruns.
Cables are supplied in wooden reels, corrugated boxes, and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect them from moisture. Required markings will be printed on the outside of the drums using weather-resistant materials according to customer requirements.
