Engineering Breakthroughs for Mining Extremes

1. Triple-Layer Defense Against Mechanical Stress:

   • Copper-Tinned Braided Screen neutralizes electromagnetic interference from heavy machinery while resisting abrasion 3× longer than standard copper screens

   • Class 5 Flexible Conductors (e.g., 396-strand for 50mm²) enable 15,000+ bending cycles—critical for dragline excavators and shuttle cars

   • Reinforced Rubber Sheath (EPDM compound) withstands rock impingement at -40°C (MYPD-3.6/6 variant), outperforming PVC alternatives that shatter below -15°C




2. Fire & Chemical Resistance:

   • Zero-Halogen Rubber (GB12972/MT818-compliant) reduces toxic fume emission by 90% during short circuits, with 180-minute circuit integrity in 1,000°C tunnel fires

   • Oil-Resistant Formulation prevents sheath degradation from hydraulic fluids and diesel, extending lifespan to 10+ years in coal mines


3. Thermal Stability for High-Load Operations:

   • Continuous 90°C tolerance (MCPT-1.9/3.3kV) supports surge currents from 3,000HP haul trucks, with XLPE-Rubber hybrid insulation reducing thermal aging by 40%

   • Low DC Resistance (e.g., 0.206 Ω/km for 95mm²) cuts energy loss by 15% versus non-compacted designs, saving mines $38k/year per 10km cable run


Certified for Global Mining Standards

Shenghua’s MCP series complies with:

• GB12972 & MT818: Validated flame retardance and tensile strength (e.g., 1,390 kg/km for MYQ-0.3/0.5kV)

• ISO 9001/OHSAS 18001: Safety management for underground deployments

• TUV/CNA S Lab Reports: Third-party verification of -40°C flexibility and 50MΩ/km insulation resistance


Technical Specifications: Shenghua MCP Mining Cable Range

Bending Radius: 6× cable diameter (15× for reinforced variants like MCPJR-0.66/1.14kV)

Critical Mining Applications

• Arctic Excavation: MYPD-3.6/6kV cables power Siberian coal mines, operating at -40°C with no sheath cracking

• Underground Drilling: MZP-0.3/0.5kV’s tinned copper screen resists sulfide corrosion in Chilean copper mines

• Tunnel Boring Machines: MCPJB-0.66/1.14kV withstands 8-ton crushing loads with Kevlar-reinforced jacketing


Why Shanghai Shenghua Dominates Industrial Cable Markets

• Top 10 Chinese Manufacturer: 30+ years serving Glencore and BHP projects, with CNAS-certified labs validating:
  • Vibration Fatigue: 10M+ cycles (ISO 6945)
  • Oil Resistance: 72h immersion in ASTM #3 oil

• Rapid Customization: 15-day delivery for bespoke screens/voltages (e.g., 95mm² to 435mm²)

• Sustainable Production: Recycled copper content (≥85%) reduces carbon footprint by 30%

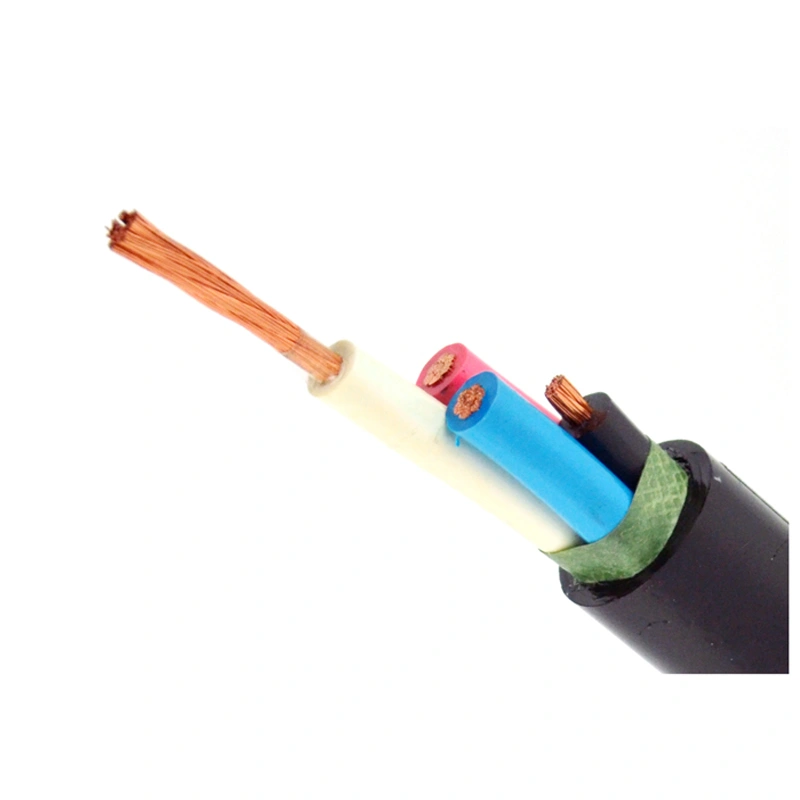

Construction:

Conductor: Flexible Class 5 Copper Conductor

Insulation: Rubber Sheath

Screen: Copper Wire Braid Screen / Tinned Copper Wire Screen

Sheath: Rubber Sheath

China supplier 0.38/0.66 rubber sheath mining power flexible copper underground cable for mining cable

TOP TEN CABLE MANUFACTURER IN CHINA

ONE OF LARGEST CABLE MANUFACTURERS IN CHINA

WITH TUV TYPE TESTING REPORT
WIDE PRODUCTS RANGE
ISO9001,ISO18001,OHSAS18001 SYSTEM CERTIFICATIONS
CNAS APPROVED LABORATORY

Brief introduction

1 Rated voltage of the cables is divided into 6 grades, which is 0.3/0.5kV,0.38/0.66kV,1.9/3.3kV,3.6/6kV,6/10kV.

2 There are allowed long-term working temperatures of the cable conductor. For the cable of U(M)CPT-0.66/1.14, U(M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14 and 1.9/3.3kV, 3.6/6kV, 6/10kV, the temperature is 90℃;for the other, it is 65℃.

3 Minimum bending radius: For the cable of U (M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14,it is 15 times of the cable diameter; for the others, it is 6 times of the cable diameters.

4 The grounding wire should be well connected with the earth.

5 The cable should be prevented from exposing to the sunshine for a long time.

Implemented standard

1 For the non-spread combustion cable, implement GB12972

2 For the flame-retardant cable, implement MT818

3 For the special mining cable(with bigger cross-section and higher voltage),implement the enterprise standard.
