Product Description

Copper clad aluminum wire is manufactured with cladding and welding technology, where high-quality copper is concentrically clad on the outer surface of an aluminum rod or steel wire core, and a strong metallurgical bond is formed between the copper layer and the core at the atomic level, integrating the two different metal materials into a single whole. It can undergo drawing and annealing processes like a single metal wire, with the copper-aluminum ratio adjustable while keeping the copper layer volume ratio relatively constant.

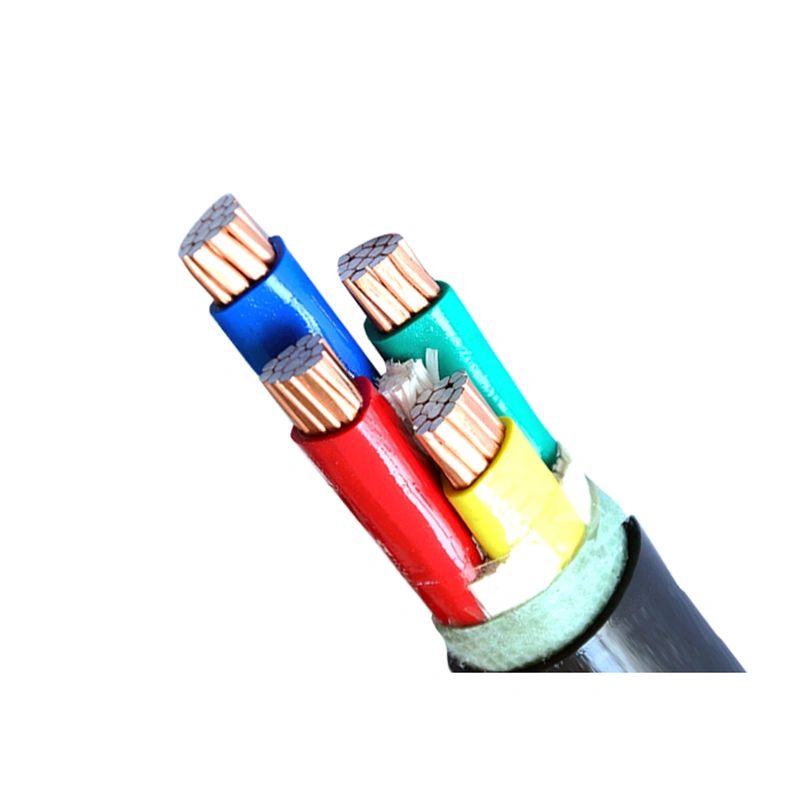

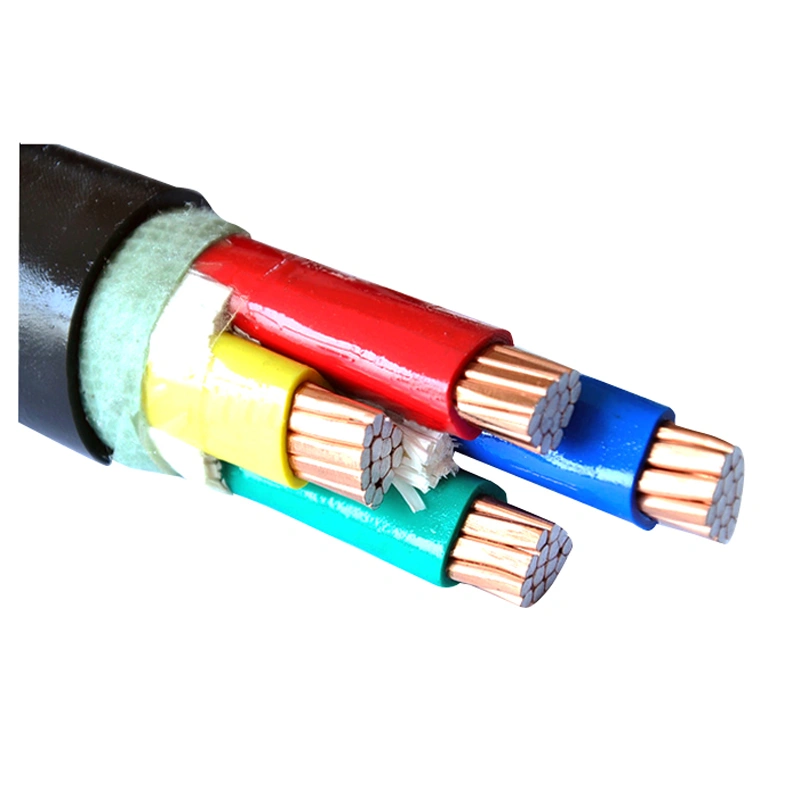

Product Structure:

Copper clad aluminum conductor
XLPE or PVC insulation
PVC or polyolefin sheath

Product Features Analysis:

1. DC Resistivity: The DC resistivity of copper clad aluminum wire is about 1.5 times that of copper wire with the same nominal value, and the weight of copper clad aluminum wire is about half that of copper wire.

2. Using copper clad aluminum conductors can continuously meet the habits of wire and cable product selection, design, installation, etc. for many years. Cable terminals can also be crimped and soldered.

3. Lower AC Resistance:

4. Light Weight and Low Cost: Compared with copper cables of the same technical specifications, copper clad aluminum conductor cables save more than 40% of cost, and copper clad aluminum/copper composite conductor cables save more than 20% of cost.

5. Good Weldability: Copper clad aluminum wire has a concentric copper layer on its surface, so it has the same weldability as copper wire, facilitating production.

Classification

One is copper clad aluminum cable for signal or communication purposes, and the other is for power supply.

Voltage Level

0.6/1KV, 3.6/6KV, 8.7/10KV, 8.7/15KV, 12/20KV
, 18/20KV, 21/35KV, 26/35KV

Type and Data

0.6/1KV Single Core
