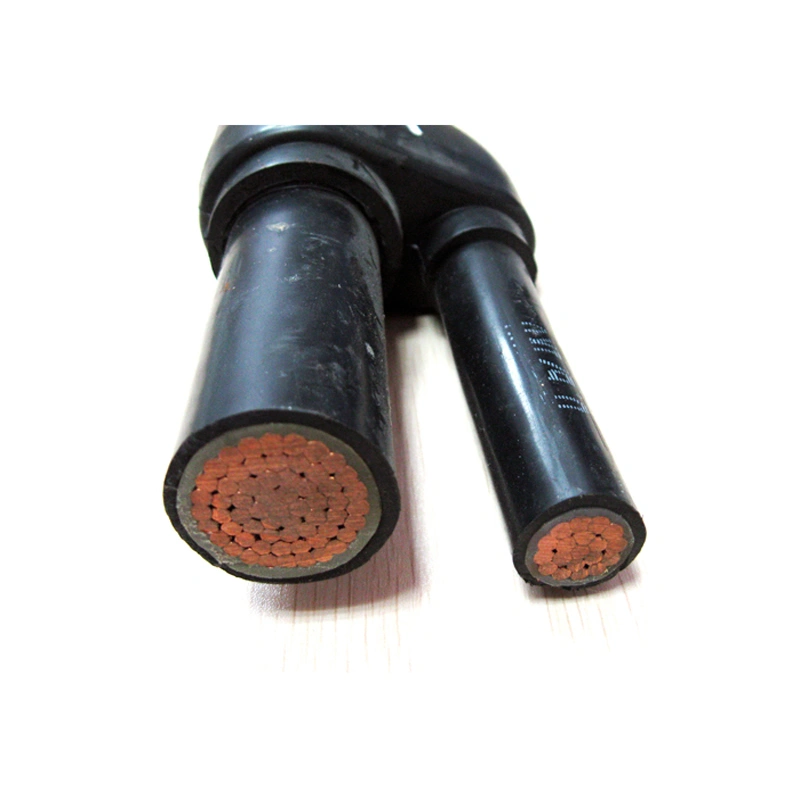

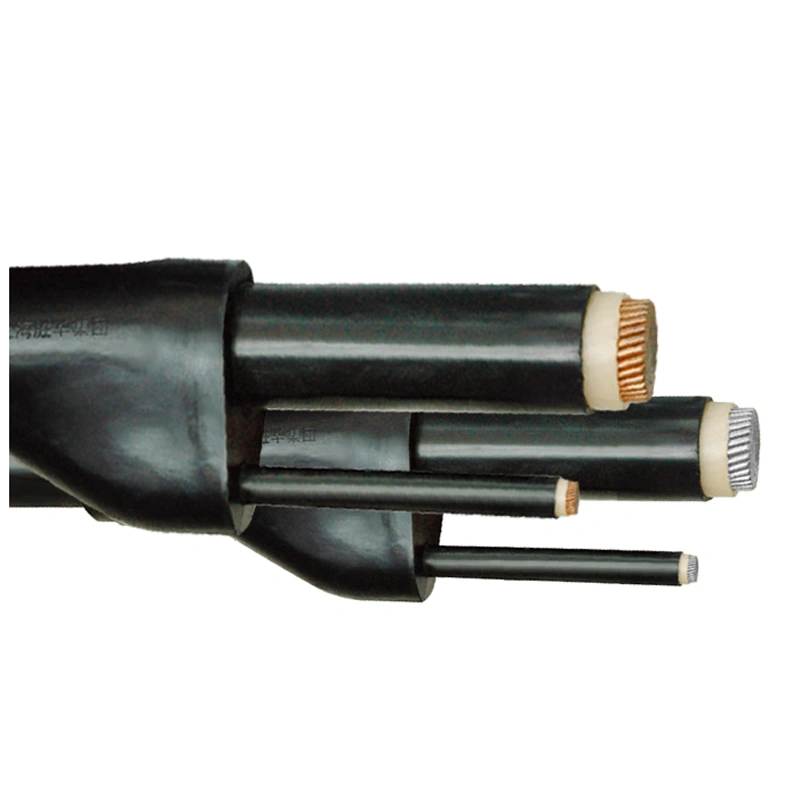

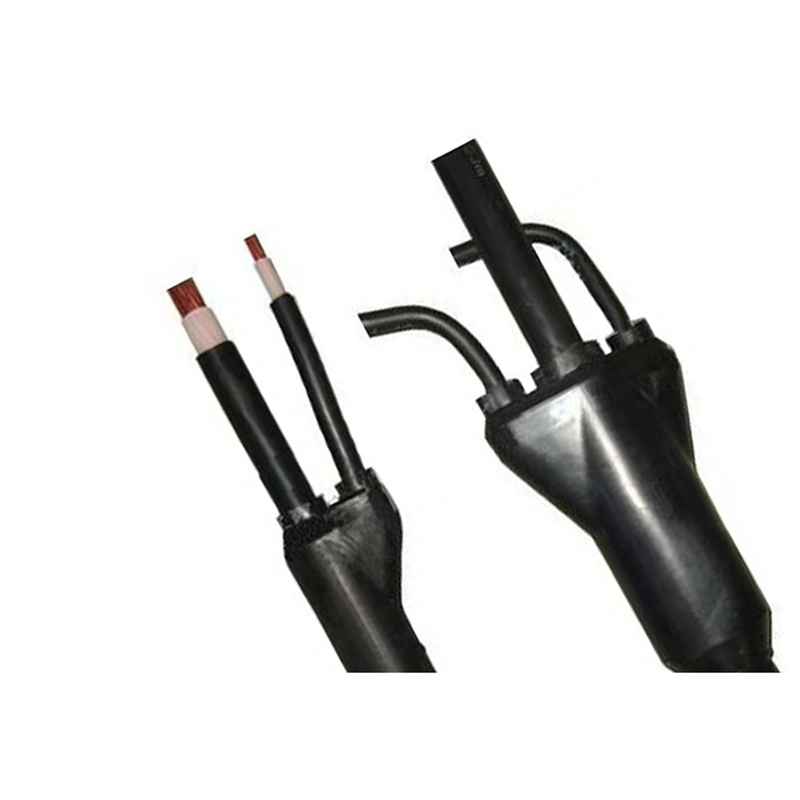

XLPE Insulated PVC Sheathed Prefabricated Branch Cable High Insulation Performance YDF

The prefab branch cable with a rated voltage of 0.6/1kV is a new type of low-voltage distribution product. The prefab design can significantly reduce labor intensity, shorten working time, and greatly lower costs.

Product Information

Model Number:

YDF-YJV, YDF-VV, YDF-YJLV

Minimum Order Quantity:

500m

Packaging Details:

Wooden drum

Payment Terms:

L/C, T/T

Inquiry

Product Details

1. Brief Introduction

Prefabricated branch cable is a new type of low-voltage distribution product. Its prefabricated design significantly reduces labor intensity, shortens working hours, and cuts costs substantially. With its excellent performance, this product is widely used in medium-to-high-rise buildings, highways, bridges, tunnels, high-rise workshops, and other applications.

2. Standards

Our factory has established factory standards in accordance with IEC 60502 and JIS 376A. The insulation performance is far superior to that specified in IEC 60502, and the joints are tested in compliance with GB 9732.

3. Type & Name

Type	Name
YDF-YJV	Copper Conductor XLPE Insulated PVC Sheathed Prefabricated Branch Cable
YDF-VV	Copper Conductor PVC Insulated PVC Sheathed Prefabricated Branch Cable
YDF-ZR-YJV	Copper Conductor XLPE Insulated PVC Sheathed Flame-Retardant Prefabricated Branch Cable
YDF-ZR-VV	Copper Conductor PVC Insulated PVC Sheathed Flame-Retardant Prefabricated Branch Cable
YDF-NH-YJV	Copper Conductor XLPE Insulated PVC Sheathed Fire-Resistant Prefabricated Branch Cable
YDF-NH-VV	Copper Conductor PVC Insulated PVC Sheathed Fire-Resistant Prefabricated Branch Cable
YDF-WL-YJE	Copper Conductor XLPE Insulated Polyolefin Sheathed Halogen-Free Low-Smoke Flame-Retardant Prefabricated Branch Cable
YDF-WL-EE	Copper Conductor Polyolefin Insulated PVC Sheathed Halogen-Free Low-Smoke Flame-Retardant Prefabricated Branch Cable
YDF-DL-YJV	Copper Conductor XLPE Insulated PVC Sheathed Low-Halogen Low-Smoke Flame-Retardant Prefabricated Branch Cable
YDF-DL-VV	Copper Conductor PVC Insulated PVC Sheathed Low-Halogen Low-Smoke Flame-Retardant Prefabricated Branch Cable

Packing and Shipping

We can meet the most stringent delivery schedules for each purchase order. Meeting deadlines is always our top priority, as any delay in cable delivery can lead to overall project delays and cost overruns.
Cables are supplied on wooden reels, in corrugated boxes, or as coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect them from moisture. Required markings will be printed on the outside of the reels using weather-resistant materials according to customer requirements.
